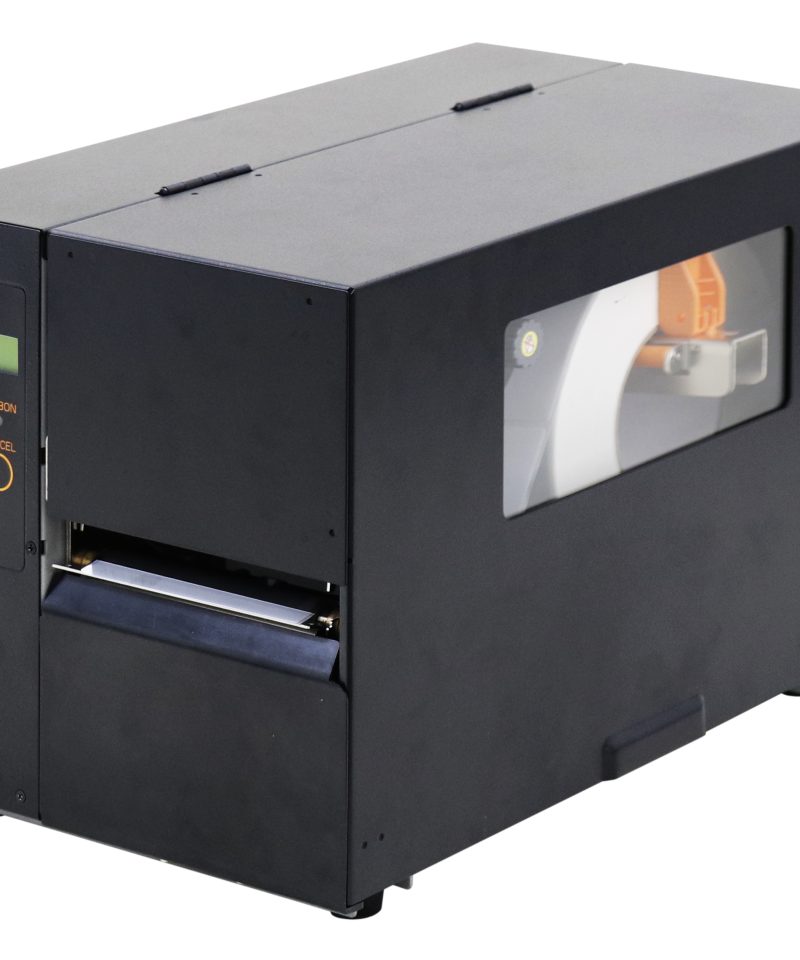

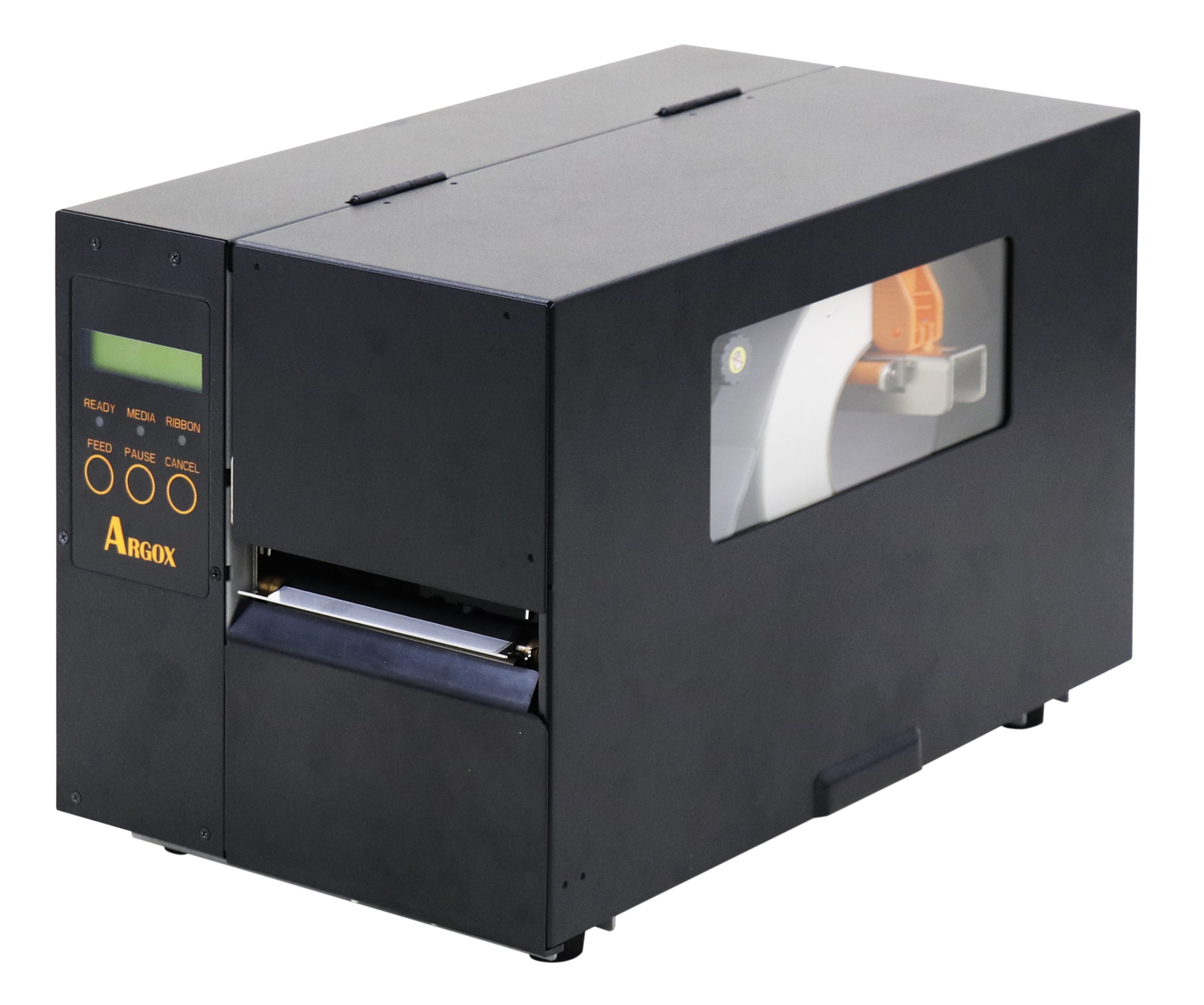

Argox IX4-380 Industrial Label Thermal Printer

product description
Feature：
• Upgraded hardware
• Optimized mechanical structure
• High printing speed
• Durable printhead
• Flat panel structure

Product successfully added to the Quote List

Description
Download

Printing Method	Direct Thermal & Thermal Transfer
Printing Resolution	300 dpi ( 12 dots/mm)
Printing Speed	Max. 8ips (203.2mm/s) (with peeler and rewinder)
Printing Length	Max. 50″ (1270mm)
Printing Width	Max. 4.16″ (105.7mm)
Memory	128MB DRAM, 128MB Flash ROM (USB storage up to 32GB)
CPU Type	32 bit RISC microprocessor
Sensors	Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)
Operation Interface	LED indicator x 3, Button x 3, LCD Display x 1
Communication Interface	USB device, RS-232, Ethernet, USB host x 2
Fonts	Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font
Wireless Security	N/A
1D Barcodes	PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS)
2D Barcodes	PPLA/PPLB：MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes
Graphics	PPLA：PCX, BMP, IMG, HEX, GDI PPLB: PCX , BMP, Binary raster, GDI PPLZ: PCX, BMP, IMG, Hex, GDI, Binary raster
Emulation	PPLA, PPLB, PPLZ, Auto
Software-label Editing	BarTender® from Seagull Scientific, Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Software-utility	BarTender, Printer Tool, Font Utility
Driver tools	Argox Seagull Driver (Win7/Win8/Win10/Win11), Argox Linux Printer Driver, Argox macOS Printer Driver, Argox RPi Printer Driver
Media Type	Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
Media	Max. width: 4.48”(114mm). Min. width: 1”(25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8”(203mm)OD on a 3”(76mm) ID core. Dealer Option 6″(152.4mm)OD on a 1.5″(38mm) ID core.
Ribbon	Max. width: 4.4”(112 mm). Min. width: 1” (25.4 mm). Length:max 450m Wax, Max OD 3.2” (81.3 mm). Core size ID 1”(25.4 mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
Drop Resistance	N/A
Printer Dimensions	W 250 mm x H 260 mm x D 405 mm
Printer Weight	29 lbs (13 kg)
Power Source	Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
Battery	N/A
Operation Environment	Operation Temperature: 40°F~104°F (4°C~40°C), 5% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
Real Time Clock	Standard
Standard Item	N/A
Optional Items	Cutter, Peeler ,GPIO module,Internal rewinder,External rewinder,External media stand
Agency Listing	CE, CB, FCC, cULus, BSMI, RoHS
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.

File Name	File Version	Download Link	File Type
IX4-380 Specification	V1.2	Download	brochure
IX4-380 Product Manual	V1.2	Download	user_manual
Seagull Driver		Download	brochure
Seagull Bartender Lite	Ver 2016	Download	brochure
